KAC-8080N – High Power Opto-Isolated Motor Controllers (72V-168V) (300A-1200A)

Using high power MOSFET’s and, SVPWM and FOC technology to achieve efficiencies of up to 99%.4

Minimum overshoot, nice waveform.

Built-in monitoring micro

SKU KAC-8080N Category


Additional information

Weight 12 lbs

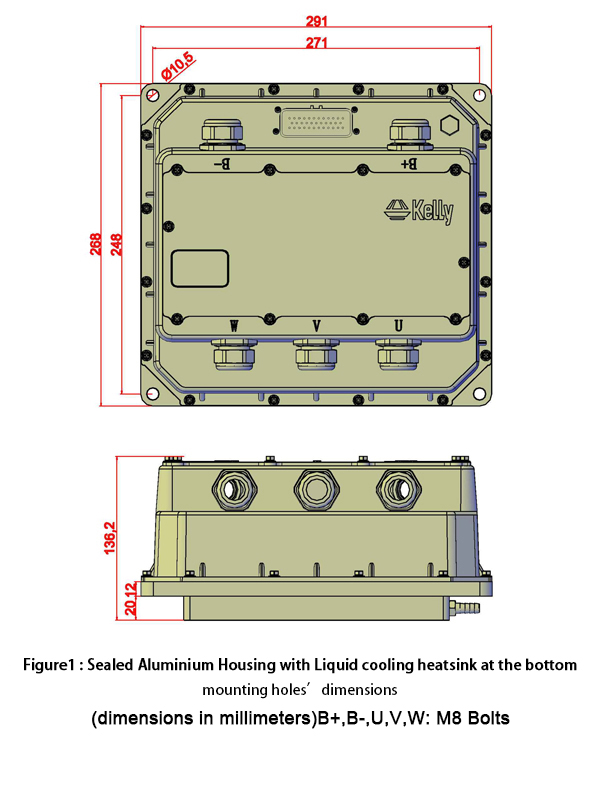

Only for Sealed Aluminium Housing

None 35pin Plug and Play Cable +$29.00

Enhanced cooling performance ,get continuous current up to 60% of peak current.

ModelNominal VoltageMax Operating Voltage2 Minutes Peak CurrentContinuous Current
* Sealed Aluminium Housing included.

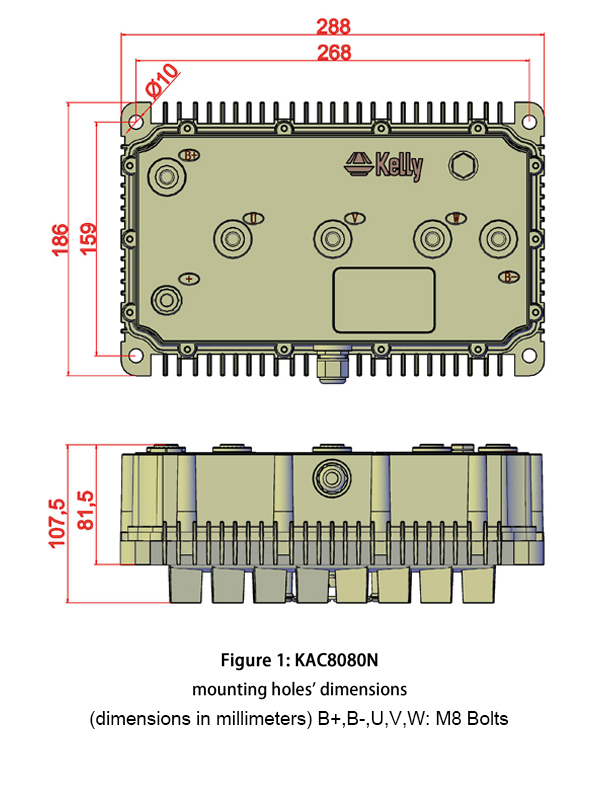

Kelly KAC-8080N AC Induction Motor Controller

It is better if customers can provide the parameters of AC motor so that we can configure the controller for the motor before ship out. We need the motor parameters below.

  • Rated Voltage AC voltage or DC Voltage. For example, 42VAC=60VDC.
  • Rated power
  • Rated speed (RPM)
  • Rated frequency
  • Motor poles
  • Pulses of Dual Channel A/B Encoder


General functions:

  • Extended fault detection and protection. The LED flashing pattern indicates the fault sources. Customers can read the error code or message in PC software or Android App also.
  • Monitoring battery voltage. It will stop driving if the battery voltage is too high and it will progressively cut back motor drive power as battery voltage drops until it cuts out altogether at the preset “Low Battery Voltage” setting.
  • Built-in current loop and over current protection.
  • Configurable motor temperature protection range.
  • Current cutback at low temperature and high temperature to protect battery and controller. The current begins to ramp down at 90℃ case temperature, shutting down at 100℃.
  • The controller keeps monitoring battery recharging voltage during regenerative braking, progressively cutting back current as battery voltage rises then cutting off regen altogether when voltage goes too high.
  • Maximum reverse speed and forward speed can be configured between 20% and 100%respectively and separately.
  • A 4pin connector to RS232 converter and USB to RS232 cable allows for configuration, programming and software upgrades using tablet which should be based on Android OS. People can do the same operation and configuration on PC software by using a standard USB to RS232 cable instead.(Recommend using USB to RS232 cable from Kelly directly)
  • Provision of a +5 volt and +12V output to supply various kinds of sensors, including Hall effective throttle or pedal type.
  • 4 switch inputs which are activated by connection to +12V. Default to forward switch,throttle switch, brake switch and reversing switch.
  • 2 analog 0-5V inputs that default to throttle input and motor temperature input.
  • Configurable motor over-temperature detection and protection with the recommendedthermistor KTY84-130/150.
  • Dual Channel A/B encoder input to support the speed control.
  • We specify 8V-20V for power supply which must be isolated from main battery pack B+/B-. Usually customers can use 12V car battery or DCDC converter.
  • Bidirectional anti-slip function(Optional) , Prevent the stationary vehicle moving in the opposite direction. After the function enabled, when the controller detects that the motor turns from standstill to the opposite direction, it will drive the motor to provide some braking force, making the vehicle stops or slows down. The braking force can be set as required. Mainly used on ride-on floor sweepers and floor scrubbers.

Caution!: Regeneration has braking effect but does not replace the function of a mechanical brake. A mechanical brake is required to stop your vehicle. Regen IS NOT a safety feature! Controller may stop regen, without warning, to protect itself or the battery(it won’t protect you!).



  • Intelligence with powerful microprocessor.
  • Synchronous rectification, ultra-low drop and fast SVPWM and FOC to achieve very high efficiency.
  • Electronic reversing.
  • Voltage monitoring on 3 motor phases, bus, and power supply.
  • Voltage monitoring on voltage source 12V and 5V.
  • Current sense on all 3 motor phases.
  • Current control loop.
  • Hardware over current protection.
  • Hardware over voltage protection.
  • Configurable limit for motor current and battery current.
  • Low EMC.
  • LED fault code.
  • Battery protection: current cutback, warning and shutdown at configurable high and low battery voltage.
  • Rugged aluminum housing for maximum heat dissipation and harsh environment.
  • Rugged high current terminals, and rugged aviation connectors for small signal.
  • Thermal protection: current cut back, warning and shutdown at high temperature.
  • Decelerating speed according to the brake rate when brake switch is active.
  • Decelerating speed according to the brake rate at reverse. Configurable reversing accelerating function.
  • Support three braking modes: release throttle braking, brake switch braking or reversing braking, neutral braking. Configurable brake time and brake release time in configuration program. Can program the regen amount in user program for different regen modes.
  • Configurable high pedal protection: the controller will not work if high throttle is detected at power on.
  • Current multiplication: Take less current from battery, output more current to motor.
  • Easy installation: 3-wire potentiometer can work.
  • Standard PC/Laptop computer to do programming. There is one more choice for customers to program KAC-S controller. Standard Tablet with Android OS to do programming. Need a Z-TEK USB to RS232 cable for connecting the controller to APP program in Tablet.
  • User program provided. Easy to use. User program can be downloaded from our website for free.



  • Frequency of Operation: 10KHz.
  • Standby Battery Current: < 0.5mA.
  • 5V Sensor Supply Current: 40mA.
  • Controller logic supply voltage,Logic PWR: 8-20V.
  • Configurable battery voltage range, B+.
  • Max output frequency can reach up to 250Hz.
  • Standard Throttle Input: 0-5 Volts (3-wire resistive pot), 1-4 Volts (hall active throttle).
  • Full Power Operating Temperature Range: 0℃ to 70℃ (Mosfet temperature).
  • Operating Temperature Range:-40℃ to 90℃, 100℃ shutdown (Mosfet temperature).
  • Max Motor Current: Configurable.
