KVD – Trapezoidal Brushless Motor Controller (12V-72V) (140A-700A)
KVD Controllers using trapezoidal six-step commutation.
Share
$99.00 – $599.00
Additional information
| Weight | 5.8 lbs |
|---|
Description
| Model | Nominal Voltage | Max Operating Voltage | Peak Current** 1 Minute | Continuous Current |
|---|---|---|---|---|
| KVD2412ND | 12-24V | 9-32V | 140A | up to 100A* |
| KVD2412N | 12-24V | 9-32V | 140A | 60A |
| KVD2418ND | 12-24V | 9-32V | 220A | up to 125A* |
| KVD2418N | 12-24V | 9-32V | 220A | 80A |
| KVD2430ND | 12-24V | 9-32V | 280A | up to 160A* |
| KVD2430N | 12-24V | 9-32V | 280A | 90A |
| KVD2435ND | 12-24V | 9-32V | 320A | up to 165A* |
| KVD4812ND | 36-48V | 27-60V | 140A | up to 100A* |
| KVD4812N | 36-48V | 27-60V | 140A | 60A |
| KVD4818ND | 36-48V | 27-60V | 220A | up to 125A* |
| KVD4818N | 36-48V | 27-60V | 220A | 80A |
| KVD4830ND | 36-48V | 27-60V | 280A | up to 160A* |
| KVD4830N | 36-48V | 27-60V | 280A | 90A |
| KVD4835ND | 36-48V | 27-60V | 320A | up to 165A* |
| KVD7212ND | 48-72V | 36-86V | 140A | up to 100A* |
| KVD7212N | 48-72V | 36-86V | 140A | 50A |
| KVD7215ND | 48-72V | 36-86V | 200A | up to 105A* |
| KVD7215N | 48-72V | 36-86V | 200A | 60A |
| KVD7218ND | 48-72V | 36-86V | 220A | up to 125A* |
| KVD7218N | 48-72V | 36-86V | 220A | 80A |
| KVD7222ND | 48-72V | 36-86V | 250A | up to 130A* |
| KVD7222N | 48-72V | 36-86V | 250A | 85A |
| KVD7230ND | 48-72V | 36-86V | 280A | up to 150A* |

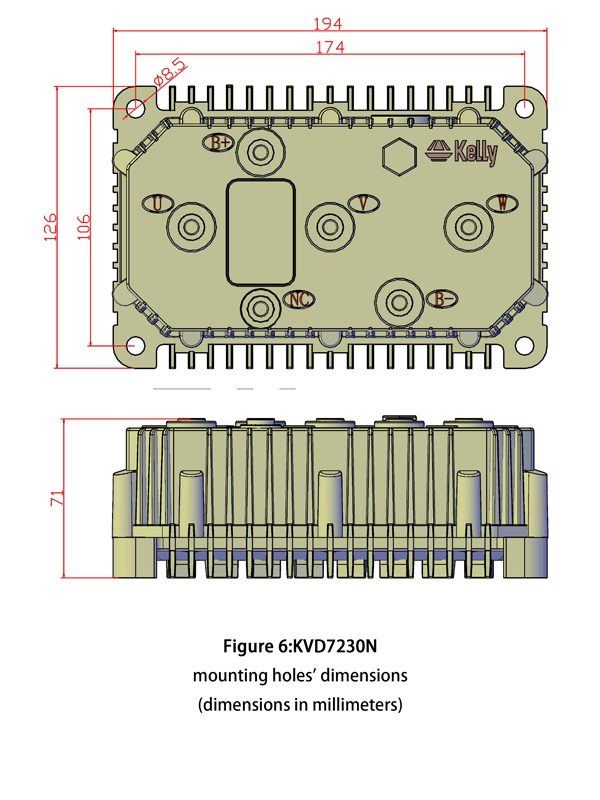

| KVD7230N | 48-72V | 36-86V | 280A | 90A |
| KVD7235ND | 48-72V | 36-86V | 320A | up to 165A* |
| Note: *Depends on conductive heat sink. **Peak current can be prolonged with additional heat sink, easily over 2 minutes. |
||||
| Model | Nominal Voltage | Max Operating Voltage | Peak Current 2 Minutes | Continuous Current |
|---|---|---|---|---|
| KVD4860NG | 36-48V | 27-60V | 400A | 160A-240A |
| KVD4875NC | 36-48V | 27-60V | 500A | 200A-300A |
| KVD48100NC | 36-48V | 27-60V | 600A | 240A-360A |
| KVD48120NC | 36-48V | 27-60V | 700A | 280A-420A |
| KVD7260NG | 48-72V | 36-86V | 400A | 160A-240A |
| KVD7275NC | 48-72V | 36-86V | 500A | 200A-300A |
| KVD72100NC | 48-72V | 36-86V | 600A | 240A-360A |
| KVD72120NC | 48-72V | 36-86V | 700A | 280A-420A |
Features:
- Intelligence with powerful microprocessor.
- Synchronous rectification, ultra low drop, fast PWM to achieve very high efficiency.
- Electronic reversing.
- Voltage monitoring on 3 motor phases, bus, and power supply.
- Voltage monitoring on voltage source 12V and 5V.
- Current sense on all 3 motor phases.
- Current control loop.
- Hardware over current protection.
- Hardware over voltage protection.
- Configurable limit for motor current and battery current.
- Low EMC.
- Battery protection: current cutback, warning and shutdown at configurable high and low battery voltage.
- Rugged aluminum housing for maximum heat dissipation and harsh environment.
- Rugged high current terminals, and rugged aviation connectors for small signal.
- Thermal protection: current cut back, warning and shutdown on high temperature.
- Controller can do Auto_Identify for different degrees of hall sensors.
- Configurable high pedal protection: the controller will not work if high throttle is detected at power on.
- Current multiplication: Take less current from battery, output more current to motor.
- Easy installation: 3-wire potentiometer will work.
- Standard PC/Laptop computer to do programming. There is one more choice for customers to program KVD controller. Standard Tablet with Android OS to do programming. Need a Z-TEK USB TO RS232 cable for connecting the controller to App program in Tablet.
- User program provided. Easy to use. No cost to customers.
- Support motors with any number of poles.
- Up to 40,000 electric RPM standard. (Electric RPM = mechanical RPM * motor pole pairs; Motor pole pairs=Motor poles/2).
- KVD-N:Dust and water protected under sealed condition,IP66
General Specifications:
- Frequency of Operation: 16.6kHz.
- Standby Battery Current: < 0.5mA.
- 5V or 12V Sensor Supply Current: 40mA.
- Configurable battery voltage range, B+.
- Standard Throttle Input: 0-5 Volts(3-wire resistive pot), 1-4 Volts(hall active throttle).
- Throttle Input: 0-5 Volts. Can use 3-wire pot to produce 0-5V signal.
- Full Power Operating Temperature Range: 0℃ to 70℃(MOSFET temperature).
- Operating Temperature Range: -40℃to 100℃ (MOSFET temperature).
- Max Battery Current :Configurable.
Downloads:
Kelly KVD Controllers User Manual
